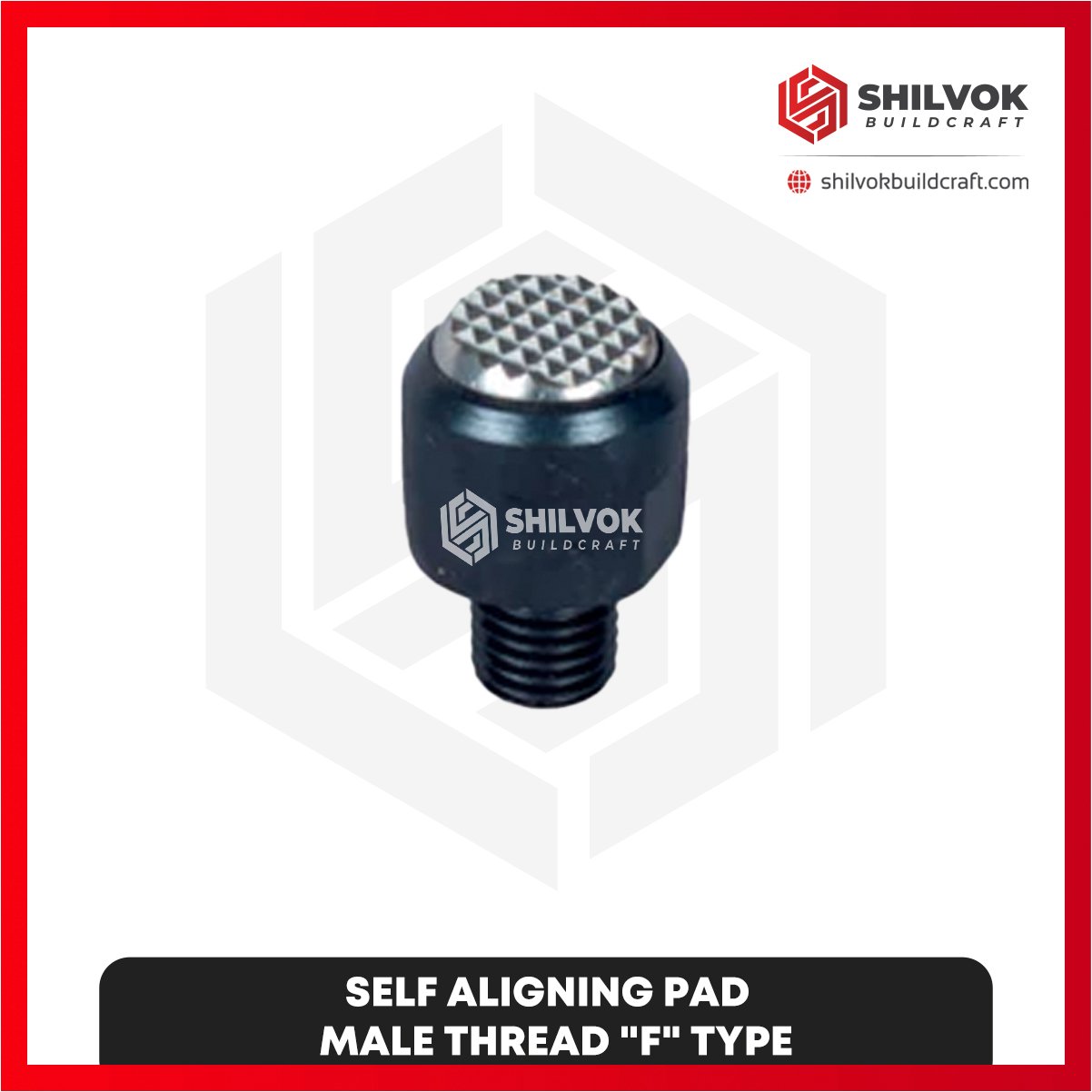

The Self Aligning Pad – Male Thread “F” Type is engineered to deliver consistent clamping force while compensating for surface irregularities. Constructed from high-strength hardened steel, these pads are highly durable and resistant to wear, suitable for repeated heavy-duty operations. Available in sizes M6 to M20, they are ideal for fixture plates, modular tooling, and workholding applications, offering precise alignment and reliable performance. The self-aligning feature allows automatic angular adjustment, preventing stress points and ensuring secure clamping during machining.

Technical Features:

Available Sizes: M6, M8, M10, M12, M16, M20

Material: High-strength hardened steel

Provides uniform load distribution and stable seating

Self-aligning design for automatic compensation of surface misalignment

Protects workpieces from deformation under clamping

Suitable for fixture plates, modular tooling, and workholding setups

Enhances clamping reliability, operational stability, and repeatable performance
